Network CCTV System

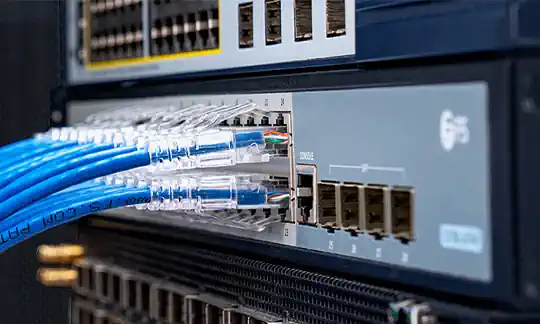

Twisted-pair cable communication (RJ45)

The network CCTV system is the most common type of video surveillance system, which uses IP cameras to transmit video via Ethernet. A network video recorder (NVR) stores the video and controls the cameras.

IP explosion-proof cameras are required for CCTV projects in hazardous environments, such as LNG facilities, to ensure that the cameras themselves do not pose any additional risk to the site.

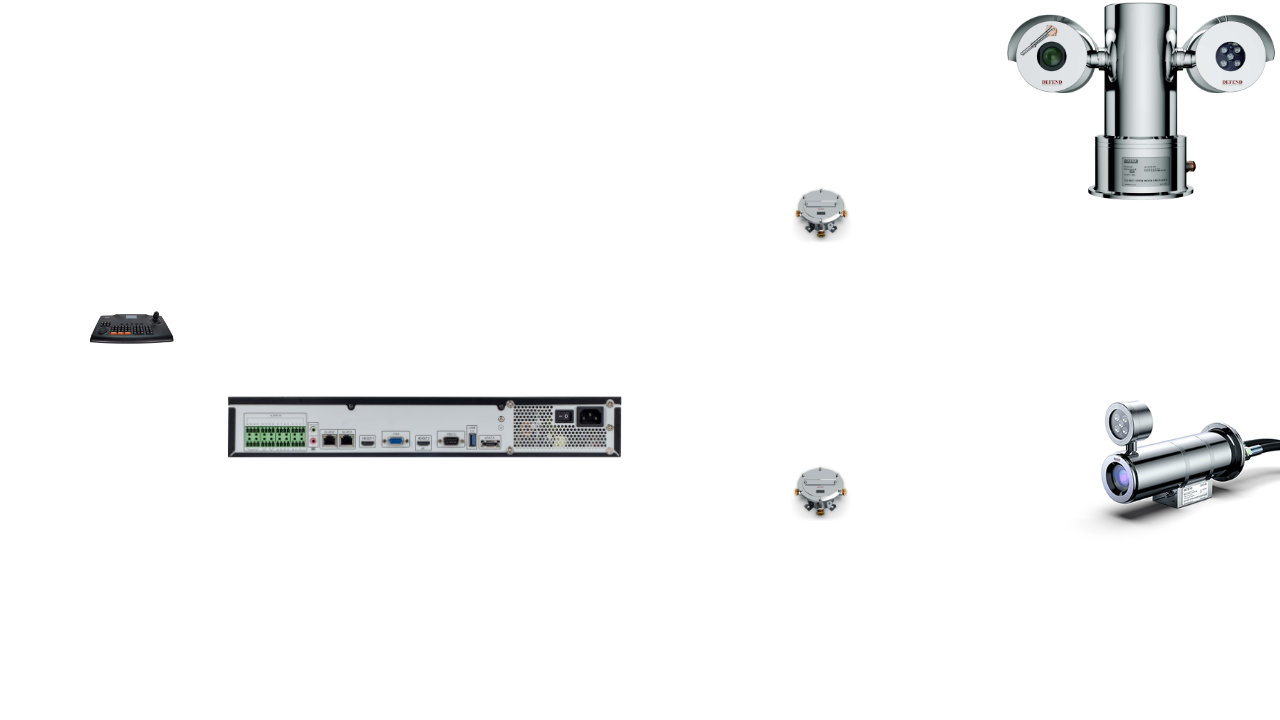

IP CCTV system diagram for hazardous areas
Basic components diagram Basic components of IP CCTV system

Basic components

  • Camera Types

    IP Explosion-proof Cameras

  • Transmission Media

    Shielded Twisted-pair (CAT6)

  • Connector

    RJ45 / SC/APC (Fiber)

  • Recording Systems

    NVRs (Safe Area)

  • Display

    Monitors / VMS Workstations

  • VMS Systems

    Video Management Software

Typical Project Bill of Materials (BOM)

A list of core equipment purchased for a network CCTV project in an LNG facility.

SGC-EX-SH-I IP IR Explosion-proof Camera

SGC-EX-SH-I

IP IR Explosion-proof Cameras
ATEX IP68 4 Megapixel 30× zoom
53 SET
SGT-EX-S2DB IP Explosion-proof IR PTZ Camera

SGT-EX-S2DB

IP Explosion-proof IR PTZ Cameras

ATEX

IP68

4 Megapixel

30× zoom

95 SET
SGX-EX-SH Explosion-proof Junction Boxes

SGX-EX-SH

Explosion-proof Junction Boxes

CNEX IP66 4 × G1/2" entries
148 SET

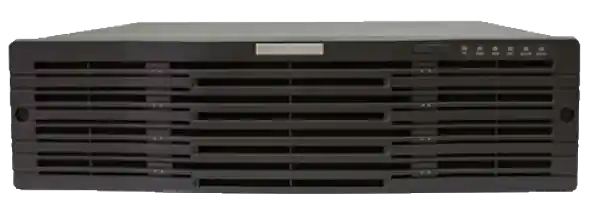

NVR316-64R-B Network Video Recorder

NVR316-64R-B

64-channel Network Video Recorders

3 SET

Related Products

SGC-Ex-SH-I IR Explosion-proof Camera

IR Explosion-proof Camera

SGC-Ex-SH-I

Learn more
SGT-Ex-S2DB Explosion-proof IR PTZ Camera

Explosion-proof IR PTZ Camera

SGT-Ex-S2DB

Learn more
SGX-EX-SH Explosion-proof Junction Box

Explosion-proof Junction Box

SGX-EX-SH

FAQs

IP CCTV systems in hazardous areas typically use shielded twisted-pair cables (CAT5e/CAT6) with RJ45 connectors. For long-distance transmission or extreme interference, fiber optic cables with SC/APC connectors are recommended.
No, standard NVRs must be installed in a safe area (non-hazardous zone). Only the cameras and junction boxes at the front end need to be ATEX/IECEx certified explosion-proof equipment.
A typical BOM includes: IP Explosion-proof Cameras, Explosion-proof Junction Boxes for cable routing, Shielded Twisted-pair Cables (CAT6), PoE Switches (in safe area or certified), and NVRs with VMS software.
