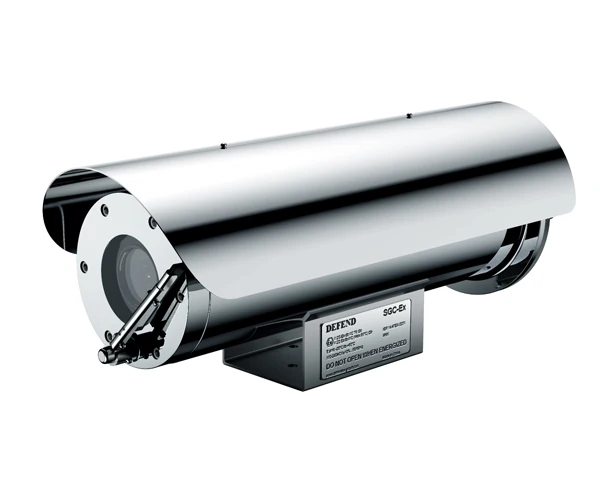

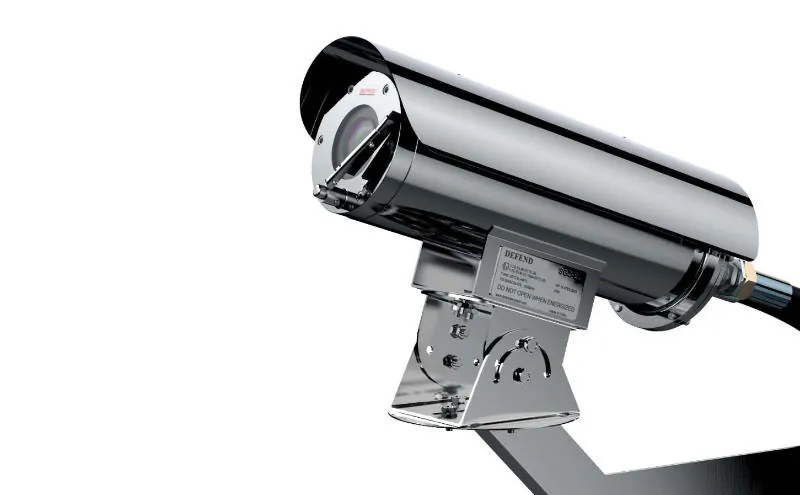

SGC-EX-SH-W Explosion-proof Camera with Wiper
Zone 1 and Zone 21 surveillance solution with integrated wiper.
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T(85°C) Db
The Explosion-proof Camera SGC-EX-SH-W operates in hazardous areas where flammable gases and vapors are present.
It features a wiper system for reliable, high-quality video even in rain and fog.
Color
SGC-EX-SH-W
Explosion-proof Cameras for Hazardous Environments
SGC-EX-SH-W designed to operate in hazardous areas per ATEX standards, specifically Zones 1, 21.
Explosion Proof Camera Housing
ATEX certified per Directive 2014/34/EU.
Operate safely in explosive gas environments such as hydrogen, acetylene, ethylene, etc.
T6 at 60 °C
T6 is the highest rated housing surface temperature in the ATEX directive, maintaining <85°C surface temp.
Resists corrosion
316L stainless steel housing resists corrosion in corrosive gas environments.
SGC-EX-SH-W applies to zones 1 and 21

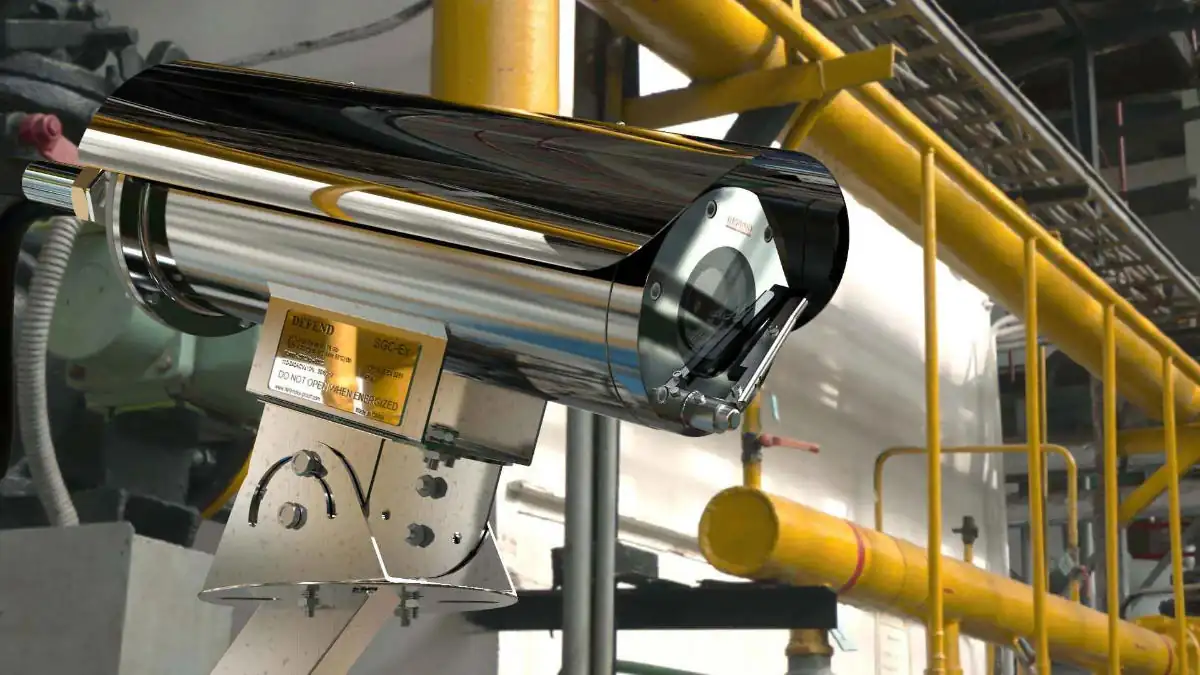

With its rugged construction and durable design, the SGC-EX-SH-W can withstand harsh environmental conditions.
Making it ideal for use in industries such as oil and gas, and chemical processing.
- Oil and gas industry
- Petroleum Refineries
- Chemical Manufacturing Plants
- Grain Handling & Storage
- Food Processing Facilities
- Pharmaceutical Production
- Military Infrastructure
- National Defense Sites
High performance explosion proof cameras
With its advanced video technology and robust construction, you can trust this camera to deliver outstanding performance and reliability in even the most extreme conditions.
4 megapixel resolution.
The SGC-EX-SH-W has the resolution of 2560 x 1440 pixels. This provides clearer and more detailed images even in harsh environments.
Ultra-low illumination
With its ultra-low illumination 0.0001 Lux, the SGC-EX-SH-W can capture high-quality images even in low-light conditions. This is critical in hazardous environments where visibility may be limited.

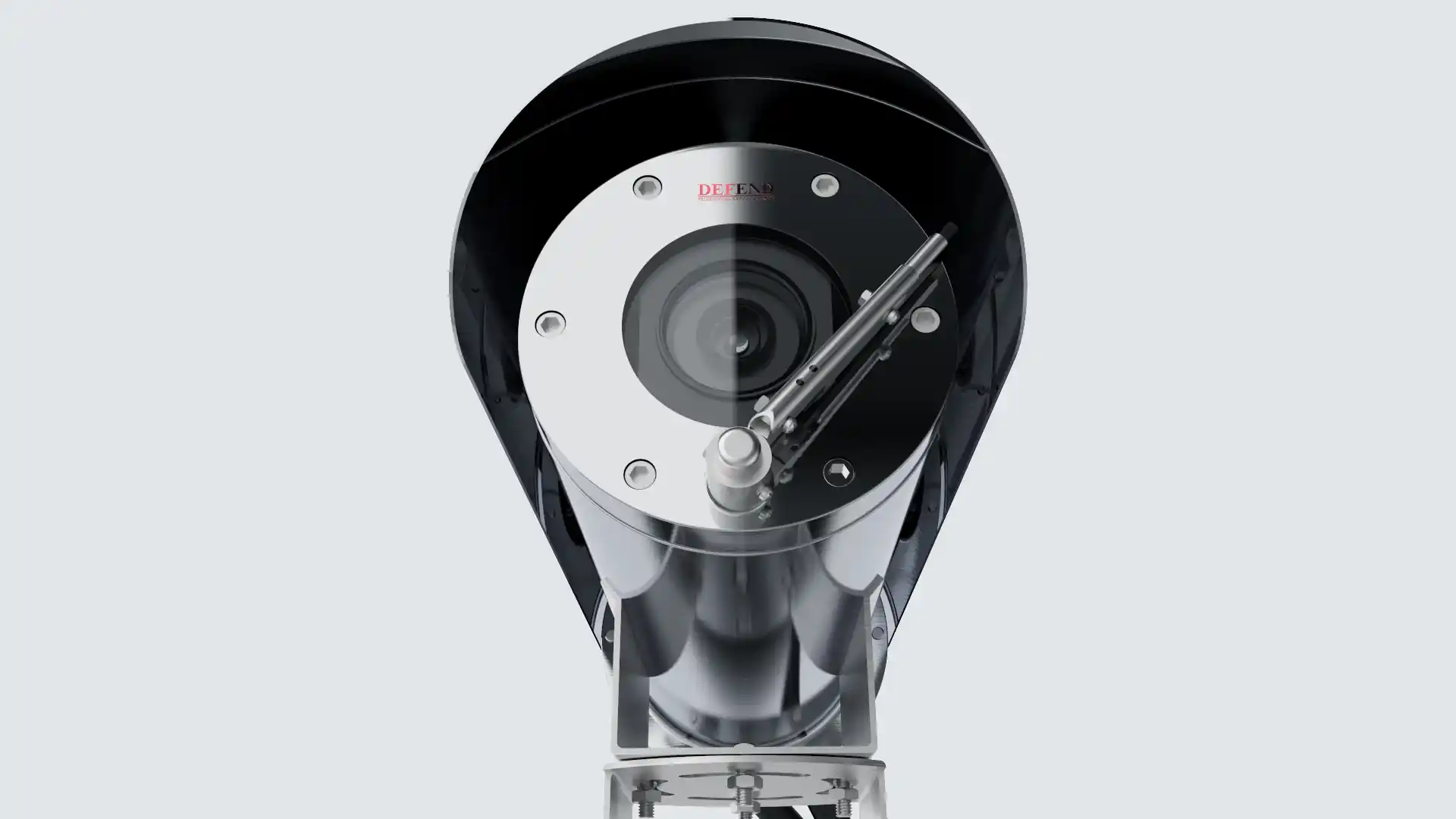

Integrated Wiper System
Ensuring Clear and Safe Surveillance in Hazardous Environments by automatically cleaning the lens in rain, fog, or dusty conditions.
Intelligent analysis
The SGC-EX-SH-W has intelligent analysis capabilities that allow it to detect and analyze potential safety hazards or security threats, such as unauthorized access or object intrusion. This can help prevent accidents and keep workers safe in hazardous environments.
Specifications
| General | |
|---|---|
| Casing |
IP68-rated Electropolished 316L stainless steel casing Integrated wiper system |
| Connector | Two G 3/4" conduit entries |
| Casing's window | Thermally tempered glass |
|
Working temperature |
-20°C to 60°C |
|
Operating conditions |
Humidity ≤95% RH @25°C Atmospheric Pressure 80-106 kPa |
|
Power consumption |
AC 110-220V ±10% 80W Max |
| Dimensions | 457 × 137 × 162 mm |
| Unit weight | 8 kg |
| Accessories |
Wall mounting bracket Sun shield |
| Warranty | Defend 3-year warranty |
| Network | |
|---|---|
| Ethernet | 10Base-T, 100Base-TX, RJ45 Connector |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
|
Compatible integration |
ONVIF (Profile S, Profile G, Profile T) |
| Camera | |
|---|---|
| Image sensor | 1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
4 MP (2592 × 1520) |
| Lens |
30× optical zoom, 16× digital zoom f=5.3 mm - 159 mm, F1.6 - F4.3 Angle of view: H: 59.8° - 2.3° |
|
Min. illumination |
Color: 0.001 Lux @ (F1.6, AGC ON) B/W: 0.0001 Lux @ (F1.6, AGC ON) |
| S/N Ratio | ≥55 dB |
|
Video compression |
H.265 / H.264 / MJPEG |
| Intelligence | |
|---|---|
| Smart function |
Support face, human and vehicle detection and capture |
|
Motion detection |
Supported |
|
Privacy masking |
Supported |
|
Intelligent analysis |
Intrusion detection Single/Double line crossing Loitering detection Wrong-way identification Illegal parking alert Accurate vehicle/human classification People counting |
| | Author: DEFEND Technical Team
Accessories
Wall bracket
SGA-S512
weight:1.2 kg
Dimensions:408 × 140 × 110 mm
Universal Joint
SGA-S909
weight:0.5 kg
Dimensions:120 × 170.5 × 77 mm
Flexibility pipe
SGA-EX-BNG
Length:1000 mm
Diameter:ø15 mm
General-Purpose Explosion-Proof Cameras
The SGC-EX-SH-W camera with integrated wiper is engineered for seamless integration into diverse industrial CCTV systems, ensuring reliable performance across a wide range of hazardous and demanding monitoring environments.
Analog over Coaxial Cable
Using BNC connector with coaxial cable
Wireless IP CCTV (Wi-Fi)
Flexible deployment with wireless connectivity
FAQs
The SGC-EX-SH-W features an integrated wiper system that automatically cleans the lens in rain, fog, or
dusty conditions, ensuring uninterrupted high-quality video surveillance in hazardous environments where
maintenance access is limited.
The SGC-EX-SH-W is certified with ATEX (II 2G Ex db IIC T6 Gb), IECEx, and CNEx standards, making it safe
for use in Zone 1 (flammable gas) and Zone 21 (combustible dust) hazardous areas.
Yes. With ultra-low illumination capability of 0.001 Lux (Color) and 0.0001 Lux (B/W), the SGC-EX-SH-W
captures clear images even in near-total darkness, critical for 24/7 hazardous area monitoring.
Absolutely. The SGC-EX-SH-W is constructed with electropolished 316L stainless steel and IP68 waterproof
rating, providing maximum resistance to salt spray, chemical exposure, and harsh offshore climates.
Yes, the SGC-EX-SH-W requires an additional water tank. Please consult your sales representative for
details.
FAQ last reviewed:
Important Notes
* Not for Use in Zone 0
This product is not certified for installation in Zone 0 hazardous areas per ATEX Directive 2014/34/EU.
** Not for Use in Class I Environments
This model is not designed for Class I hazardous environments. For mining applications, please refer to our certified model: KBA127F Mining Explosion-Proof Camera.
1. IP68 Waterproof Certification
Certified by an IEC-authorized laboratory. Standard: IEC 60529:1989 + A1:1999 + A2:2013.
2. Flameproof Infrared Lamp Testing
- Irradiation Distance: No national standard exists for this metric. Effective range is evaluated based on how far the zebra board remains visible under night vision conditions.
- Test Conditions: Ambient light < 0.001 lux (at 550 nm); visibility > 10 km.
- Test Equipment: Infrared-compatible B/W camera (0.1 lux), F1.5–2.0 lens, zebra board, power supply, and display device.
- Test Method: Illuminate a zebra board at 10 meters using the IR lamp. Gradually move it back until it is no longer visible. Multiply the final distance by 0.6 to determine the lamp's effective range.
