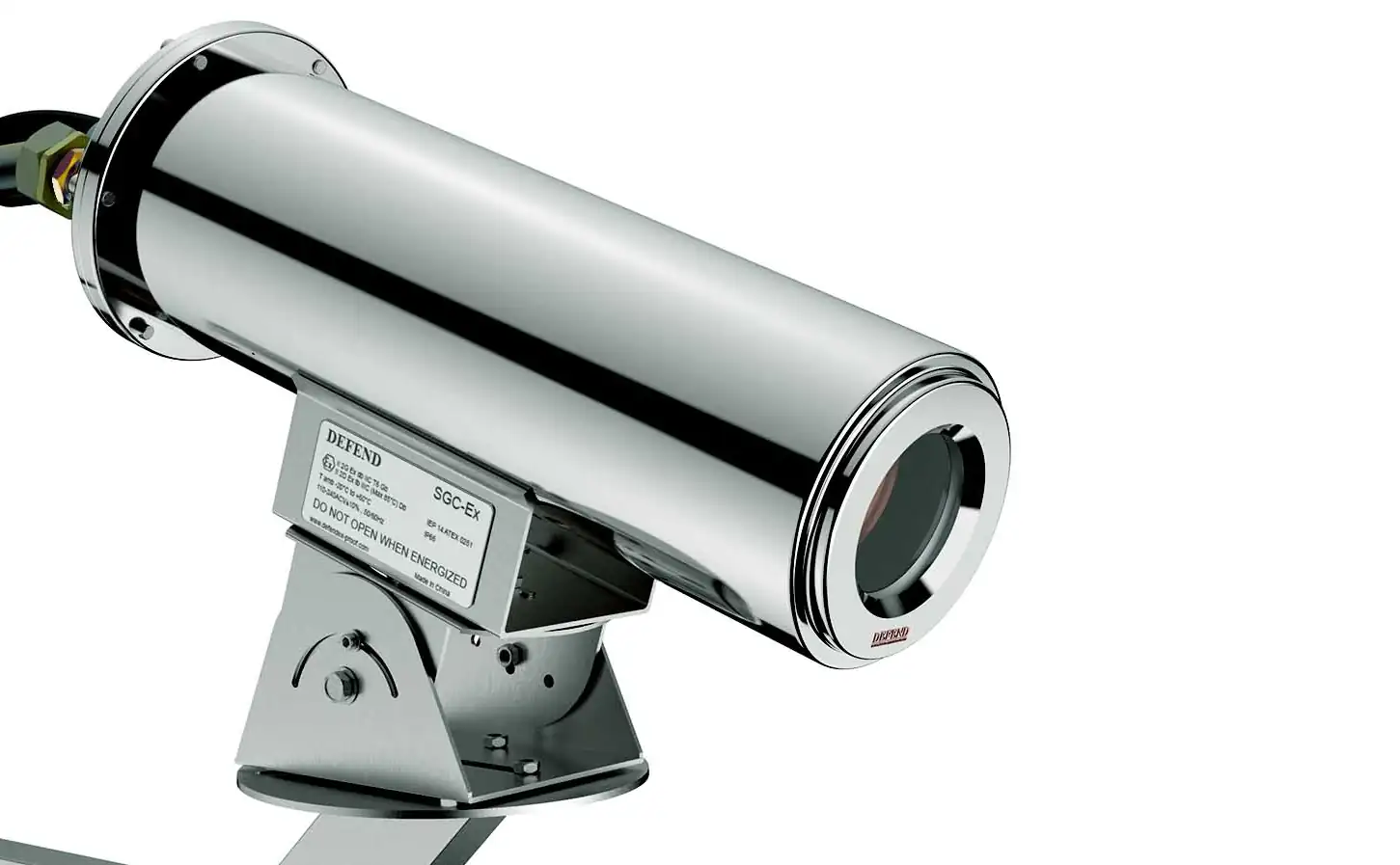

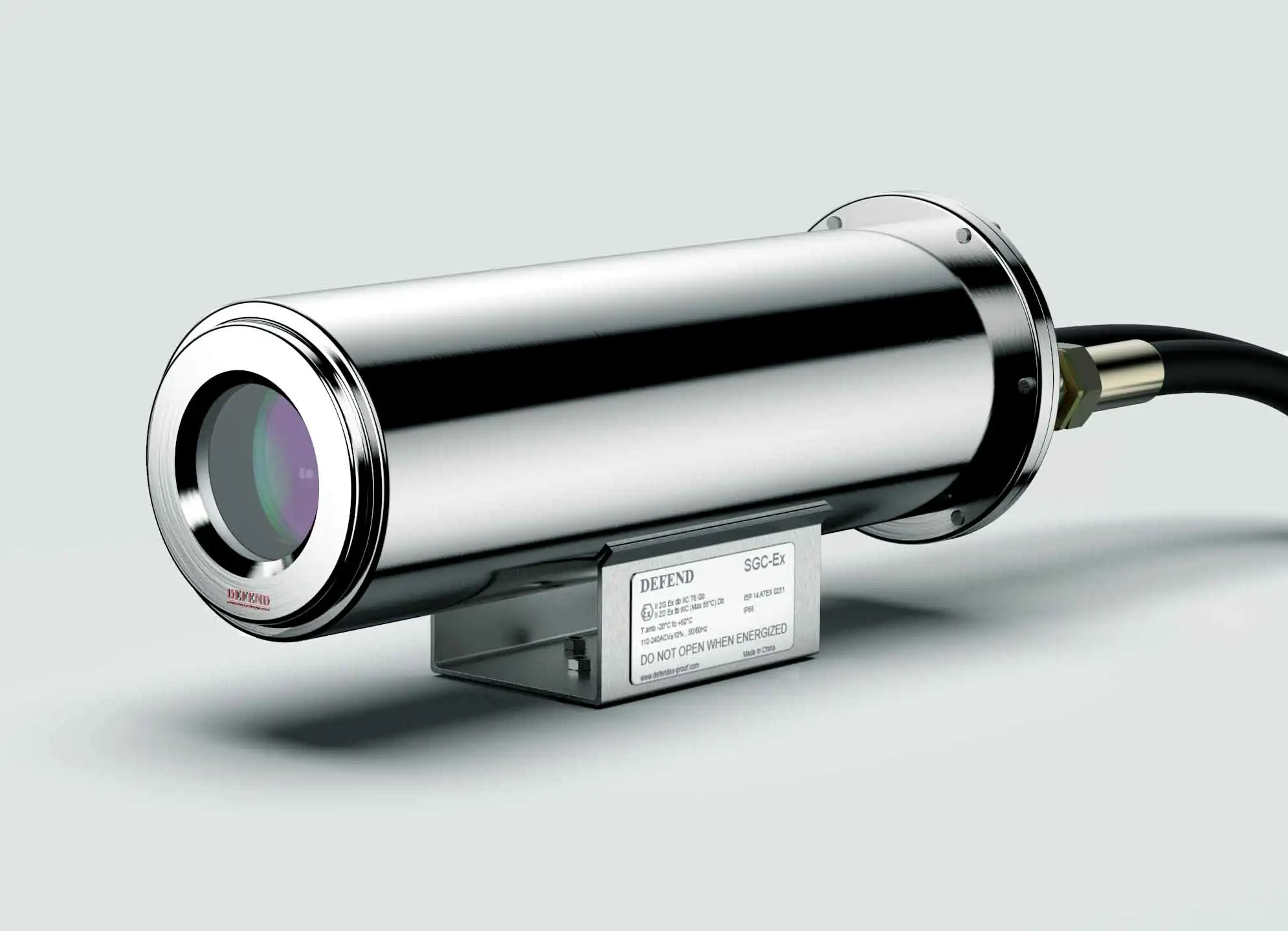

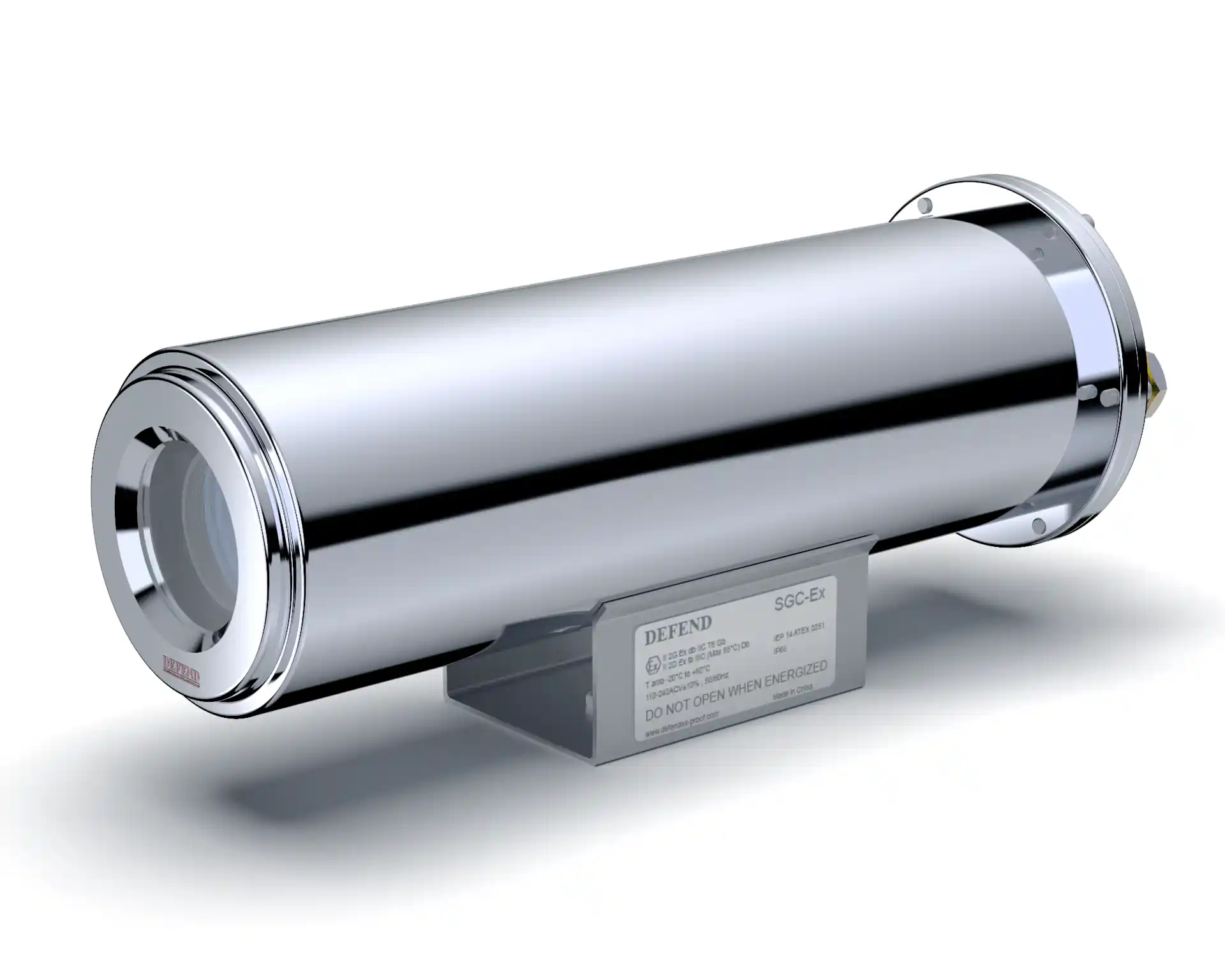

SGC-EX-SH
HD Explosion Proof Camera
Marking:
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC (85°C) Db
The SGC-EX-SH is a high-definition explosion-proof camera specifically engineered for Zone 1 hazardous areas where flammable gases and vapors are present. It features a robust 316L stainless steel housing with an IP68 rating, ensuring reliable video surveillance in extreme conditions such as oil refineries and chemical plants.
Price:
$1,890.00
(VAT not included)
Color
Official Suppliers to
HD Explosion-proof Cameras SGC-EX-SH for Division 1 Operation
What makes SGC-EX-SH suitable for Class II, Division 1?
The SGC-EX-SH explosion-proof camera housing is designed to meet the stringent requirements of hazardous environments, including Class II, Division 1 areas, where combustible dust is present.
Explosion Proof Housing
ATEX certified. Operate safely in explosive gas environments such as hydrogen, acetylene, ethylene, etc.
IP68 Enclosure Ratings
The highest level of waterproof protection against dust and continuous submersion.
T6 Temperature Class
T6 is the highest rated housing surface temperature in the ATEX directive (Max 85°C).
Corrosion Resistant
316L stainless steel housing resists corrosion in corrosive gas and marine environments.

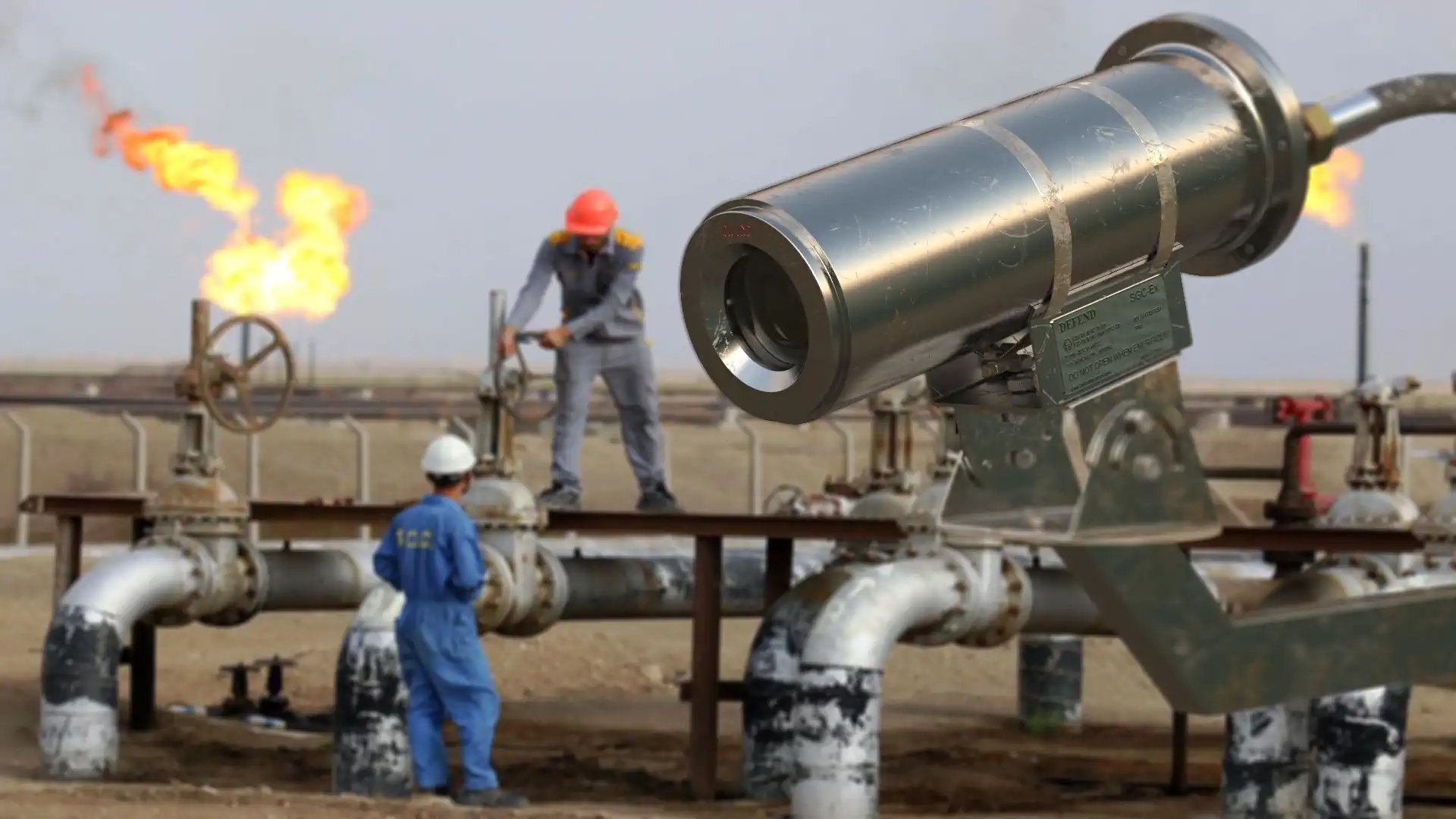

Which industries utilize explosion-proof cameras?
Explosion-proof cameras SGC-EX-SH are widely used in the petroleum and petrochemical industries. They encapsulate electronic components in a certified explosion-proof housing to prevent fires in hazardous areas, ensuring continuous and safe video surveillance.
- Oil and gas industry
- Refineries
- Chemical plants
- Grain silos
- Food processing
- Pharmaceuticals
- Military
- Defense
The Explosion-proof camera housing is made of stainless steel 316L, providing protection against chemicals and corrosive gases.

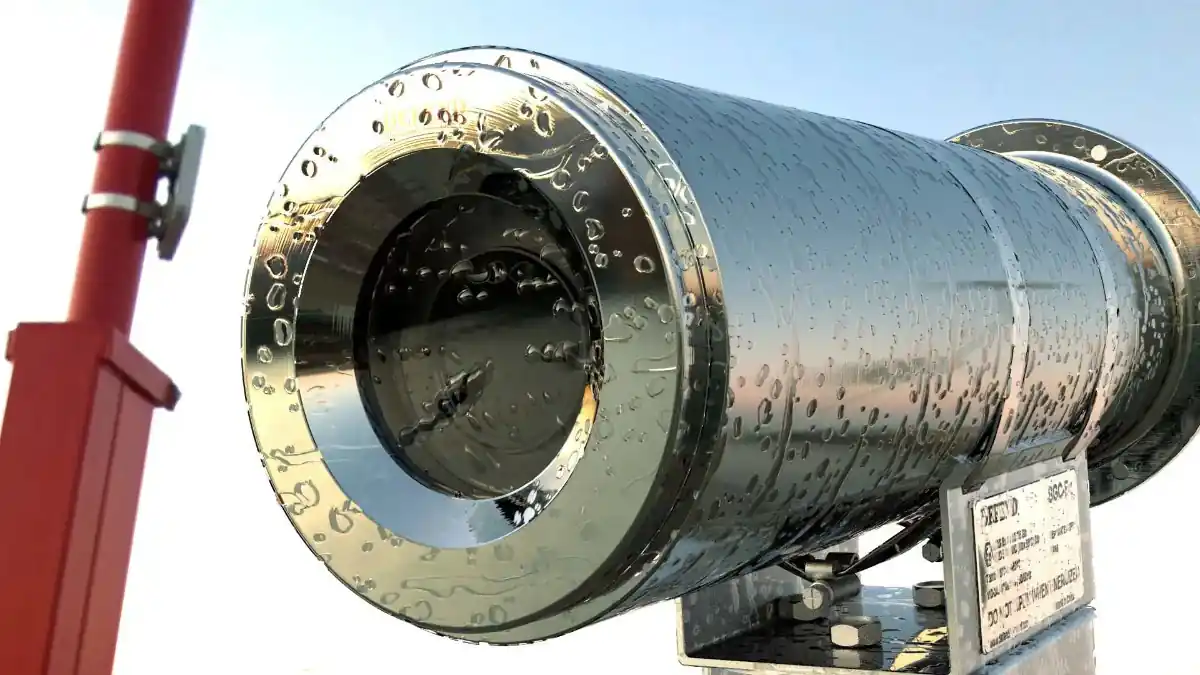

IP68
The IP68 rating means that the product is protected against powerful water jets and continuous submersion.
High performance explosion proof cameras
With its advanced video technology and robust construction, you can trust this camera to deliver outstanding performance and reliability in even the most extreme conditions.
4 megapixel resolution
The SGC-EX-SH has a resolution of 2560 × 1440 pixels. This provides clearer and more detailed images even in harsh environments.
Ultra-low illumination
With its ultra-low illumination 0.0001 Lux, the SGC-EX-SH can capture high-quality images even in low-light conditions.
Intelligent analysis
The SGC-EX-SH has intelligent analysis capabilities that allow it to detect and analyze potential safety hazards or security threats.
Specifications
| General | |
|---|---|
| Casing |
IP68 - rated Electropolished 316L stainless steel casing Color: Brushed stainless steel |
| Connector | Two G 3/4" conduit entries |
| Casing's window | Thermally tempered glass |
|
Working temperature |
-20 °C to 60 °C |
|
Operating conditions |
Humidity ≤ 95% RH (+25 °C) Atmospheric Pressure 80-106 kPa |
|
Power consumption |
AC 110-220 V ± 10% 80 W Max |
| Dimensions | 385 × 137 × 126 mm |
| Unit weight | 7 kg |
| Accessories | Wall mounting bracket |
| Warranty | Defend 3-year warranty |
| Network | |
|---|---|
| Ethernet | 10 Base-T, 100 Base-TX, RJ45 Connector |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
|
Compatible integration |
ONVIF (Profile S, Profile G, Profile T) |
| Camera | |
|---|---|
| Image sensor | 1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
4 MP (2592 × 1520) |
| Lens |
30× optical zoom, 16× digital zoom f = 5.3 mm - 159 mm, F 1.6 - F 4.3 Angle of view: H: 59.8° - 2.3° |
|
Min. illumination |
Color: 0.001 Lux @ ( F1.6, AGC ON), B/W: 0.0001 Lux @ ( F1.6, AGC ON) |
| S/N Ratio | 55 dB |
|
Video compression |
H.265 / H.264 / MJPEG |
| Intelligence | |
|---|---|
| Smart function |
Support face, human and vehicle detection and capture |
|
Motion detection |
Support |
|
Privacy masking |
Support |
|
Intelligent analysis |
Intrusion, Single line crossing, Double line crossing Loitering, Wrong way, Illegal Parking Accurate vehicle and human detection, People counting |
Accessories
Wall bracket
SGA-S512
weight: 1.2 kg
Dimensions:408 × 140 × 110 mm
Universal Joint
SGA-S909
weight: 0.5 kg
Dimensions:120 × 170.5 × 77 mm
Flexibility pipe
SGA-EX-BNG
Length: 1000 mm
Diameter:ø 15 mm
General-Purpose Explosion-Proof Cameras
The SGC-EX-SH camera is engineered for seamless integration into diverse industrial CCTV systems, ensuring reliable performance across a wide range of hazardous and demanding monitoring environments.
FAQs
What certification standards does the SGC-EX-SH comply with?
Can explosion proof cameras SGC-EX-SH be used in Division 1?
Yes, the explosion proof cameras SGC-EX-SH can be used in Division
1 hazardous environments.
Explosion-proof cameras for Division 1 must have ATEX/IECEx or equivalent certification, a flameproof enclosure, appropriate IP rating, certified for Division 1 use, and a suitable temperature class to prevent ignition of hazardous atmospheres.
Explosion-proof cameras for Division 1 must have ATEX/IECEx or equivalent certification, a flameproof enclosure, appropriate IP rating, certified for Division 1 use, and a suitable temperature class to prevent ignition of hazardous atmospheres.
I'm wondering if the SGC-EX-SH explosion-proof cameras are waterproof.
SGC-EX-SH explosion-proof camera reaches the highest waterproof
grade IP68.
Important Notes
* Not for Use in Zone 0
This product is not certified for installation in Zone 0 hazardous areas.
** Not for Use in Class I Environments
This model is not designed for Class I hazardous environments. For mining applications, please refer to our certified model: KBA127F Mining Explosion-Proof Camera.
1. IP68 Waterproof Certification
Certified by an IEC-authorized laboratory.
Standard: IEC
60529:1989 + A1:1999 + A2:2013.
2. Flameproof Infrared Lamp Testing
- Irradiation Distance: No national standard exists for this metric. Effective range is evaluated based on how far the zebra board remains visible under night vision conditions.
- Test Conditions: Ambient light < 0.001 lux (at 550 nm); visibility > 10 km.
- Test Equipment: Infrared-compatible B/W camera (0.1 lux), F1.5–2.0 lens, zebra board, power supply, and display device.
- Test Method: Illuminate a zebra board at 10 meters using the IR lamp. Gradually move it back until it is no longer visible. Multiply the final distance by 0.6 to determine the lamp's effective range.
