Resolution:400 × 300
Lens:15mm fixed
Color Mode:Rainbow
Temp Range:-40 °C - 150 °C

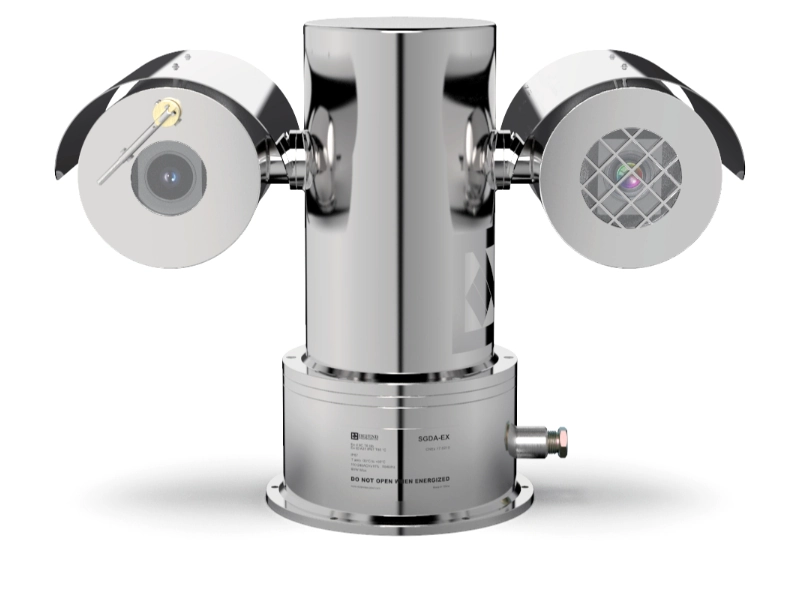

SGDA-Ex-P Explosion-proof Thermal PTZ Camera
Zone 1 and Zone 21 thermal surveillance solution.
Ex d IIC T6 Gb
Ex tD A21 IP67 T85°C
- VOx uncooled focal plane detector
- Thermal 640 × 512
- NETD ≤ 40mK
- Temperature monitoring and anomaly alarm
Color
SGDA-Ex-P
Zones 1 Explosion-proof Thermal PTZ Cameras
Explosion Proof Camera Housing
CNEX certified per CNEX standards.
Operate safely in explosive gas environments such as hydrogen, acetylene, ethylene, etc.
T6 at 60°C
T6 is the highest rated housing surface temperature in the CNEX standard system, maintaining <85°C surface temp.
Resists corrosion
316L stainless steel housing resists corrosion in corrosive gas environments.
SGDA-Ex-P applies to zones 1 and 21
With its rugged construction and durable design, the SGDA-Ex-P can withstand harsh environmental conditions.
Making it ideal for use in industries such as oil and gas, and chemical processing.
- Oil and gas industry
- Petroleum Refineries
- Chemical Manufacturing Plants
- Grain Handling & Storage
- Food Processing Facilities
- Pharmaceutical Production
- Military Infrastructure
- National Defense Sites
High performance explosion proof thermal cameras
With its advanced video technology and robust construction, you can trust this camera to deliver outstanding performance and reliability in even the most extreme conditions.

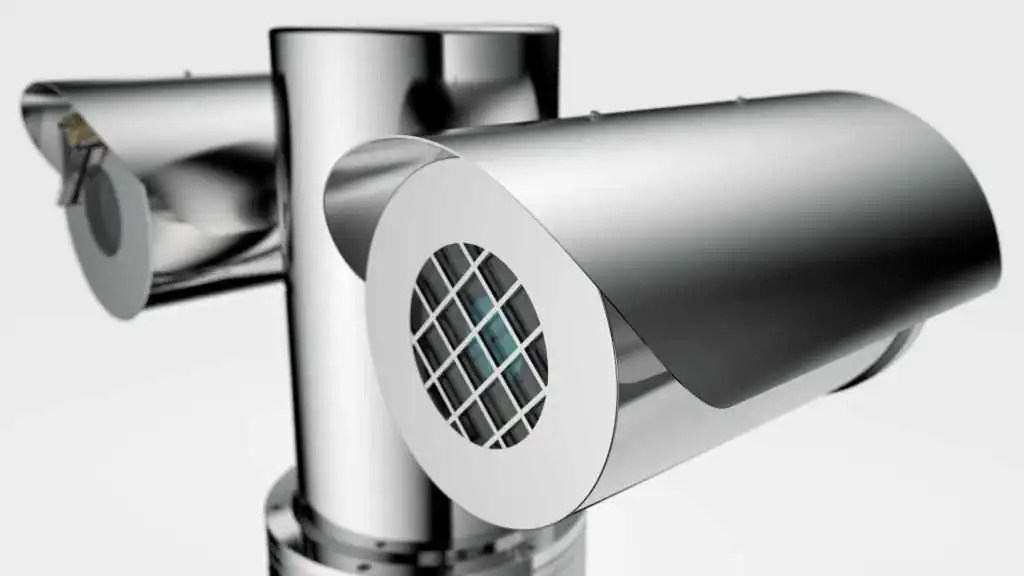

Thermal & optical Bi spectrum
Thermal & optical Bi spectrum, double the range, double the accuracy, double the safety.
High sensitivity
At 375 meters, people(1.8m × 0.5m) and fire(1m × 1m) are detected. At 94 meters, people can be identified.

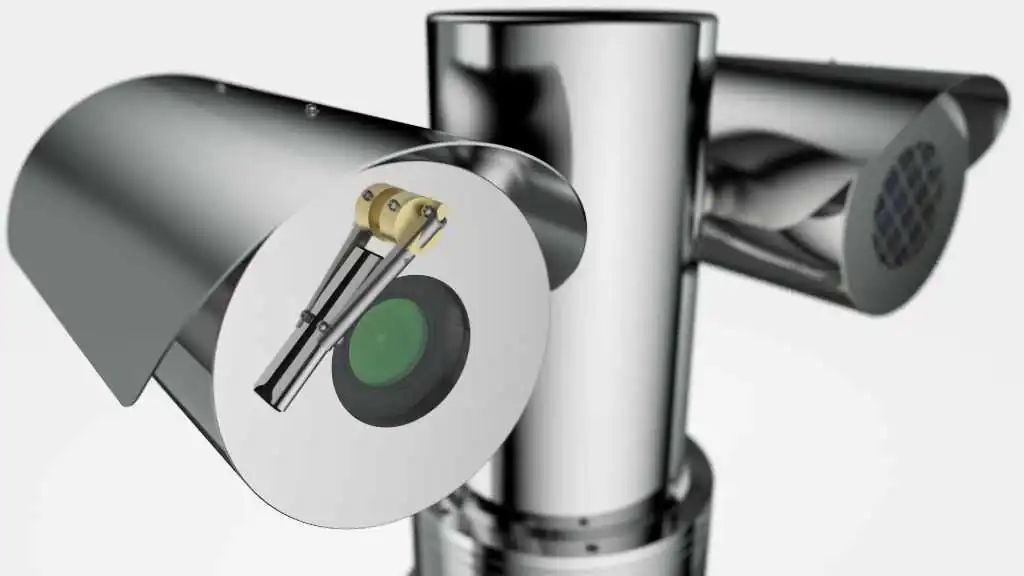

Integrated Wiper System
Ensuring Clear and Safe Surveillance in Hazardous Environments by automatically cleaning the lens in rain, fog, or dusty conditions.
Pan / Tilt Functionality
360-degree surveillance, no corners missed.
Intelligent analysis
The SGDA-Ex-P has intelligent analysis capabilities that allow it to detect and analyze potential safety hazards or security threats, such as unauthorized access or object intrusion. This can help prevent accidents and keep workers safe in hazardous environments.

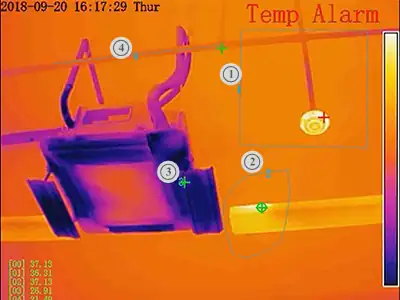

Temperature detection
Rectangular area
Capture area
Spot
Line

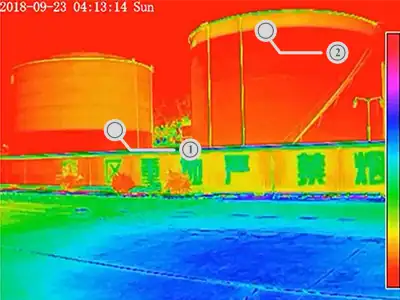

Detection for liquefied natural gas (LNG) and oil storage
Liquid position TANK
Resolution:640 × 512
Lens:35mm fixed
Color Mode:Rainbow
Temp Range:-40 °C - 150 °C

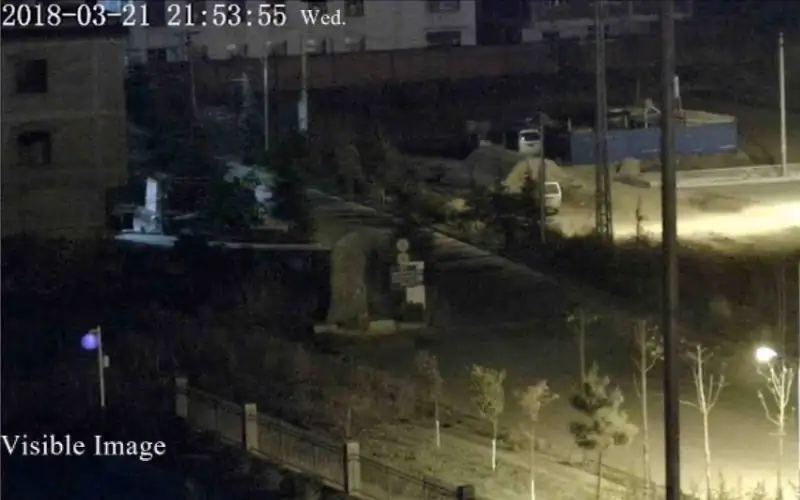

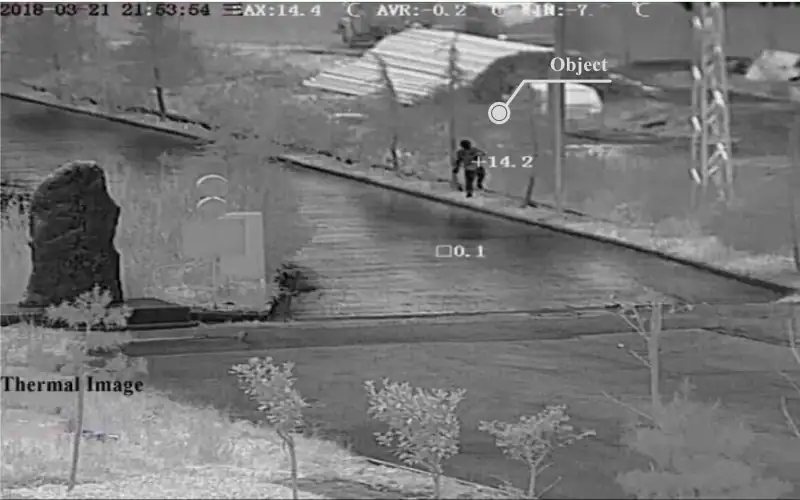

Contrast between visible and thermal image
Thermal Module
Resolution:640 × 512
Lens:35mm fixed
Color Mode:Rainbow
Temp Range:-40 °C - 150 °C
Visible Module
Resolution:1920 × 1080
Lens:20× optical zoom
Specifications
| General | |
|---|---|
| Casing |
IP67-rated Electropolished 316L stainless steel casing Color: Brushed stainless steel Integrated wiper system |
| Connector | One G 3/4" conduit entry |
| Casing's window |
Thermally tempered glass Germanium glass (Thermal) |
| Pan / Tilt |
Pan: 0°-360° continuous Tilt: -90° to +90° Pan Speed: 0.1°/s - 40°/s Tilt Speed: 0.1°/s - 40°/s |
|
Working temperature |
-30°C to 60°C |
| Pre-position |
256 locations Automatic scanning Automatic cruise |
|
Operating conditions |
Humidity ≤95% RH @25°C Atmospheric Pressure 80-106 kPa |
|
Power consumption |
AC 110-220V ±10% 80W Max |
| Dimensions | 507 × 283 × 397mm |
| Unit weight | 35kg |
| Accessories | Wall mounting bracket |
| Warranty | Defend 3-year warranty |
| Network | |
|---|---|
| Ethernet | 10Base-T, 100Base-TX, RJ45 Connector |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
|
Compatible integration |
ONVIF (Profile S, Profile G, Profile T) |
| Visible Module | |
|---|---|
| Image sensor | 1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
4MP (2592 × 1520) |
| Lens |
30× optical zoom, 16× digital zoom f=5.3mm - 159mm, F1.6 - F4.3 Angle of view: H: 59.8° - 2.3° |
|
Min. illumination |
Color: 0.01 Lux @ (F1.6, AGC ON) B/W: 0.001 Lux @ (F1.6, AGC ON) |
| S/N Ratio | ≥55 dB |
|
Video compression |
H.265 / H.264 / MJPEG |
| Thermal module | |
|---|---|
| Detector type | VOx Uncooled Focal Plane Arrays |
| Resolution | 640 × 512 |
| Pixel pitch | 12µm |
|
Response waveband |
8-14µm |
|
Thermal Sensitivity (NETD) |
≤40mK |
| Lens type | Fixed focal length |
| Communication |
| Control | RS-485 |
| Baud rate | 2,400 / 4,800 / 9,600 / 19,200 bps |
| | Author: DEFEND Technical Team
Accessories
Wall bracket
SGA-S101
weight:5.8kg
Dimensions:540 × 220 × 170mm
Flexibility pipe
SGA-EX-BNG
Length:1000mm
Diameter:ø15mm
General-purpose Explosion-proof cameras
The SGDA-Ex-P is widely used in a variety of different types of CCTV systems for hazardous area monitoring.
IP CCTV over Twisted-Pair
Wired with CAT5e/CAT6 cabling (RJ-45)
Analog CCTV over Coaxial
Using BNC connector with coaxial cable
Wireless IP CCTV (Wi-Fi)
Flexible deployment with wireless connectivity
FAQs
No, the SGDA-Ex-P supports the standard ONVIF protocol and is fully compatible with major third-party VMS
software platforms.
The SGDA-Ex-P is certified with CNEX (Ex d II C T6 Gb), making it safe for use in Zone 1
(flammable gas) and Zone 21 (combustible dust) hazardous areas.
The SGDA-Ex-P has a built-in motor, which effectively prevents the gimbal from getting stuck due to coking.
The SGDA-Ex-P features an electrically heated defrosting and wiper system that can easily handle
condensation, icing and dust contamination. This ensures that the explosion-proof thermal imaging system
consistently provides clear, stable and uninterrupted real-time thermal images, even in harsh and hazardous
environments.
FAQ last reviewed:
- Notes:
-
*NOT AVAILABLE in the Zone 0 per CNEX standards!
-
**NOT AVAILABLE in the Class I environment!
To learn about portable Mine Intrinsically Safe Smart Terminals, contact your business representative. -
1
The IP67 waterproof test comes from a designated laboratory of the CNEX issuing authority.
Test standard: IEC 60529:1989 + A1:1999 + A2:2013.
-
*
