Network CCTV System

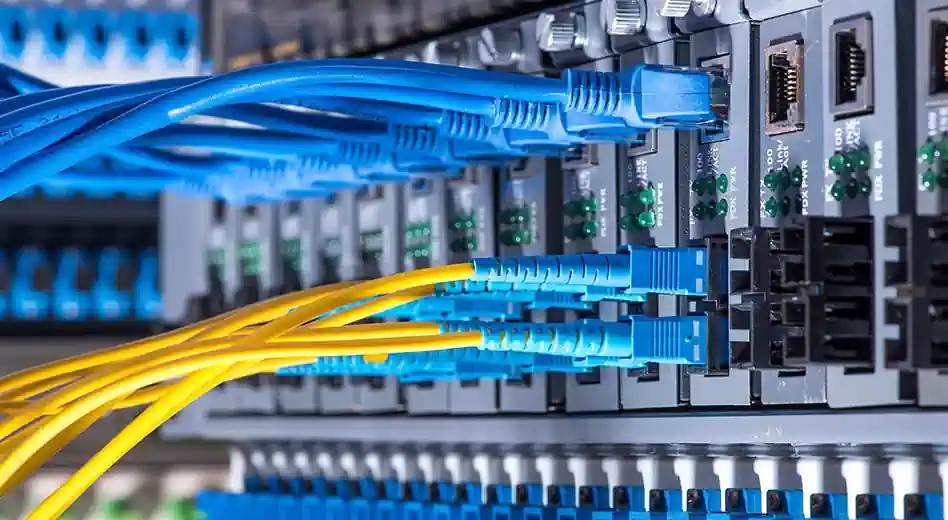

Fiber-optic cable communication (SC/APC)

Network-based CCTV systems that communicate over fiber-optic cables offer unmatched performance over typical copper systems, covering greater distances without signal degradation.

Fiber optic CCTV system diagram for hazardous areas
Basic components diagram Basic components of fiber optic CCTV system

Basic components

  • Camera Types

    IP Explosion-proof Cameras

  • Transmission Media

    Fiber-optic cables (Single-mode)

  • Transmit Side

    SFP modules (SC/APC)

  • Receiving Side

    Fabric switches / SFP receivers

  • Recording Systems

    NVRs (Safe Area)

  • Display

    Monitors / VMS Workstations

  • VMS Systems

    Video Management Software

Typical Project Bill of Materials (BOM)

A list of core equipment purchased for a fiber optic network CCTV project.

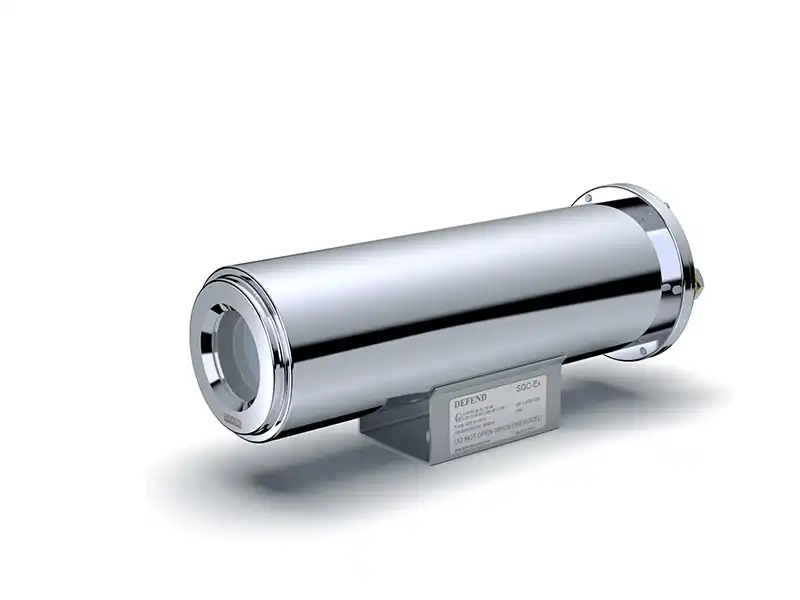

SGC-EX-SH IP Explosion-proof Camera

SGC-EX-SH

IP Explosion-proof Cameras
ATEX IP68 4 Megapixel 30× zoom
11 SET
SGT-EX-S2DB IP Explosion-proof PTZ Camera

SGT-EX-S2DB

IP Explosion-proof IR PTZ Cameras
ATEX IP68 4 Megapixel 30× zoom
15 SET
SGX-EX-SH Explosion-proof Junction Boxes

SGX-EX-SH

Explosion-proof Junction Boxes

CNEX IP66 4 × G1/2" entries
49 SET
NVR316-64R-B Network Video Recorder

NVR316-64R-B

64-channel Network Video Recorders

1 SET

Related Products

SGC-Ex-SH Explosion-proof Camera

Explosion-proof Camera

SGC-Ex-SH

Learn more
SGT-Ex-S2DB Explosion-proof IR PTZ Camera

Explosion-proof IR PTZ Camera

SGT-Ex-S2DB

Learn more
SGX-EX-SH Explosion-proof Junction Box

Explosion-proof Junction Box

SGX-EX-SH

Frequently Asked Questions

Why use fiber optic cables for IP CCTV in hazardous areas?

Fiber optic cables offer unmatched performance over copper systems, covering greater distances (up to 25km+) without signal degradation. They are also immune to electromagnetic interference (EMI), making them ideal for large oil & gas or chemical plants.

What components are needed for a fiber optic CCTV system?

A typical fiber optic BOM includes: IP Explosion-proof Cameras with SFP module slots, Single-mode/Multi-mode Fiber-optic cables, SFP transceivers (SC/APC connectors), Fiber patch panels, and NVRs located in the safe area control room.

What is the maximum transmission distance for fiber optic CCTV?

Using single-mode fiber optic cables and appropriate SFP modules, IP CCTV systems can transmit high-definition video up to 25 kilometers or more without the need for signal repeaters, ensuring zero latency and no data loss.
